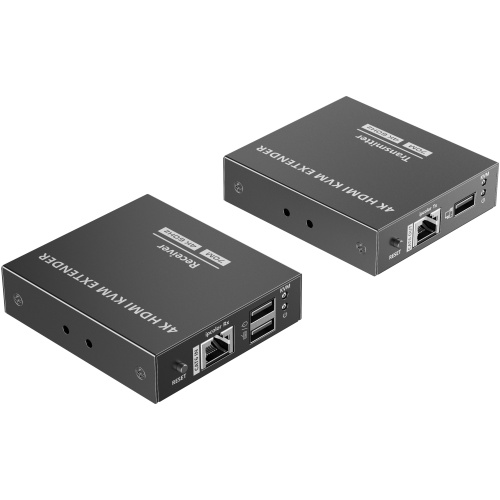

Lenkeng KVM HDMI Extender over Ethernet 4K60Hz 70m Loop IR LKV565KVM

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, KVM function, 3.5mm stereo audio output, etc. This kit is a reliable, ultrahigh- definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.ipcolor IMAGE4K@60HzHDRVisually LosslessUltra Low LatencyKVMWidescreen Resolutions70MHDMI Loop-outAuto Down-Scaling3.5mm L/R OutputLightning Protection-Surge Protection-ESD Protection—HDMI length ≤ 5mMaximum transfer rate 18GbpsCompatibility HDMI 2.0HDCP 2.2Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1920×1200, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600Transmission distance CAT6/6A/7 ≤ 60mAudio formats LPCM/DTS-Audio/Dolby Digital 5.1CH/Dolby AtmosUSB version USB 1.1, compatible with USB 1.0Power Supply TX: DC 5V/2A，RX: PoC (Powered by TX)Power Consumption TX RX<8WWorking -10℃~60℃Storage temperature -30℃~70℃Humidity 0~90% RH (no condensation)Housing lronWeight TX: 146g，RX: 146gColor BlackDimensions 85.0(L)x75.5(W)x21.5(H)mmProtection ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection—
